FRP water tanks are widely used water storage solutions known for their lightweight structure, corrosion resistance, high strength, long service life, and convenient installation. They are commonly applied in domestic water supply systems, fire-fighting water storage, industrial circulating water systems, building projects, and municipal engineering. To ensure safe and stable operation in long-term use, proper installation is essential.

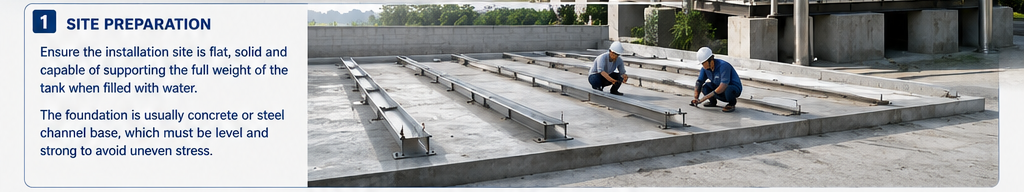

Before installing an FRP water tank, the installation site should be carefully checked to ensure that the foundation is flat, solid, and capable of supporting the full weight of the tank when filled with water. The foundation is usually made of concrete or steel channels. It must have sufficient load-bearing capacity and a level surface. An uneven foundation may cause uneven stress on the tank body, affecting sealing performance and reducing the service life of the tank. In addition, enough space should be reserved around the tank for installation, inspection, cleaning, and future maintenance.

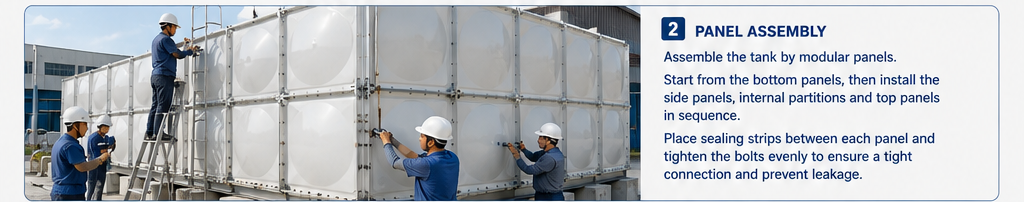

FRP water tanks are generally assembled from modular panels. Before installation, all tank panels, tie rods, sealing strips, bolts, flanges, and accessories should be checked according to the drawings. Each component should be free from damage or deformation before assembly begins. The installation usually starts from the bottom panels. After the bottom panels are placed and leveled, the side panels, internal partitions, and top panels are installed in sequence. Sealing strips should be placed between each panel, and the bolts should be tightened evenly to ensure a firm connection and prevent leakage.

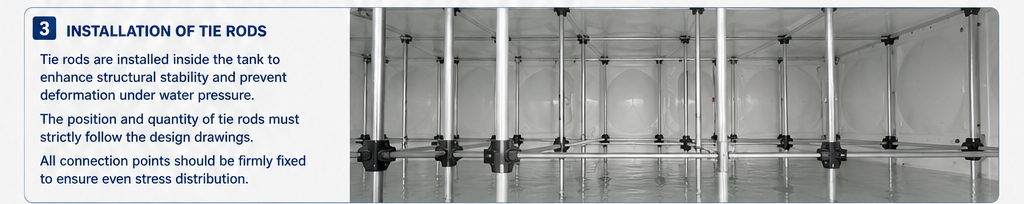

The installation of internal tie rods is also very important. Tie rods help strengthen the overall structure of the tank and prevent the tank walls from bulging or deforming under water pressure when the tank is full. During installation, the position and quantity of tie rods should strictly follow the design drawings. They must not be reduced or changed without authorization. All connection points should be firmly fixed to ensure even stress distribution throughout the tank.

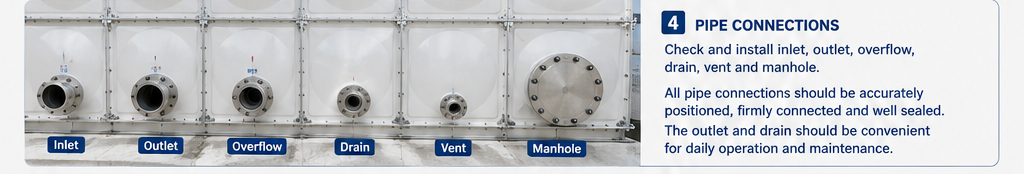

After the tank body is assembled, the inlet, outlet, overflow, drain, vent, and manhole should be carefully inspected. Each pipe connection should be accurately positioned, firmly connected, and properly sealed. The outlet and drain should be designed for convenient daily operation and maintenance. The vent and manhole should also be arranged reasonably to allow air circulation inside the tank and provide easy access for cleaning and inspection.

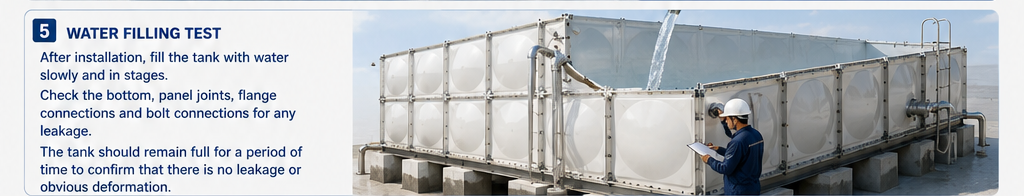

Once the installation is completed, a water filling test must be carried out. Water should be added slowly and in stages. During the test, the bottom panels, side panel joints, flange connections, and bolt connections should be inspected carefully for any signs of leakage. If leakage is found, the cause should be checked immediately, and the sealing strips or bolts should be adjusted as needed. In general, the tank should remain full of water for a certain period of time to confirm that there is no leakage or obvious deformation before it is put into operation.

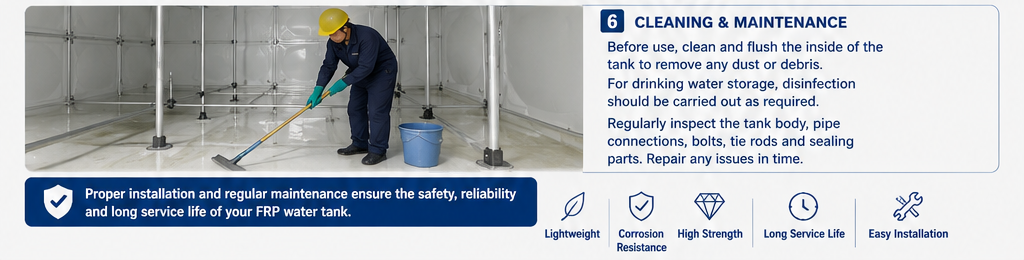

Before official use, the inside of the tank should be cleaned and flushed to remove dust, debris, and any installation residue. If the tank is used for domestic water storage, cleaning and disinfection should be carried out according to project requirements to ensure water quality and safety. During daily use, the tank body, pipe connections, bolts, tie rods, and sealing parts should be inspected regularly. Any looseness, aging, or leakage should be repaired in time.
In conclusion, although FRP water tanks are relatively easy to install, every installation detail can affect their long-term performance. A reliable foundation, correct panel assembly, proper sealing, accurate tie rod installation, and a complete water filling test are all necessary to ensure safe, stable, and long-lasting operation. Choosing high-quality FRP water tank products and professional installation services is an important guarantee for project quality and water safety.
